Our Products

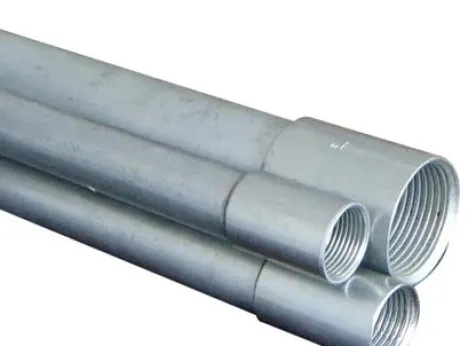

Thick Wall Conduit System
Features
1. Easy and accurate bending
CAKRA Conduit is made of high quality steel and processed by high - freguecy induction welding ti prevent flattening and splitting
2. Easy wire pushing and pulling.
The high - grade stove enamel coating on the inside wall makes wire pulling easy and protect against corrosion
3. Easy Coupling and fast instaltation
Precise, sharp threads cut by automated machinery mean fast, easy instalation. The precise threads also make our conduit virtually moisture tight.
4. High corrosion resistance
Pure zine coating on the exterior wall and stove enamel finish on the inside protect Conduit from corrosion, even by harsh chemical and sea air.
5. Uniform guality
Flat too is rolled, zinc-coated and threaded in one continuous automated process for uniform high quality
1. Easy and accurate bending
CAKRA Conduit is made of high quality steel and processed by high - freguecy induction welding ti prevent flattening and splitting
2. Easy wire pushing and pulling.
The high - grade stove enamel coating on the inside wall makes wire pulling easy and protect against corrosion
3. Easy Coupling and fast instaltation
Precise, sharp threads cut by automated machinery mean fast, easy instalation. The precise threads also make our conduit virtually moisture tight.
4. High corrosion resistance
Pure zine coating on the exterior wall and stove enamel finish on the inside protect Conduit from corrosion, even by harsh chemical and sea air.
5. Uniform guality
Flat too is rolled, zinc-coated and threaded in one continuous automated process for uniform high quality
| Threaded Conduit G | |||||||||
| Size | Outside Diameter | Approximate Inside | Nominal wall thickness | Weight without coupling | |||||
| In | mm | In | mm | In | mm | lbs/ft | kg/ft | kg/m | |
| G-16 | 0.827 | 21 | 0.647 | 16.4 | 0.090 | 2.3 | 0.712 | 0.323 | 1,060 |
| G-22 | 1,043 | 26.5 | 0.863 | 21.9 | 0.090 | 2.3 | 0.921 | 0.418 | 1,370 |
| G-28 | 1,311 | 33.3 | 1,115 | 28.3 | 0.098 | 2.5 | 1,277 | 0.579 | 1,900 |
| G-36 | 1,650 | 41.9 | 1,454 | 36.9 | 0.098 | 2.5 | 1,633 | 0.741 | 2,430 |
| G-42 | 1,882 | 47.8 | 1,686 | 42.8 | 0.098 | 2.5 | 1,875 | 0.850 | 2,790 |
| G-54 | 2,346 | 59.6 | 2,126 | 54.0 | 0.110 | 2.8 | 2,634 | 1,195 | 3,920 |
| G-70 | 2,961 | 75.2 | 2,741 | 69.6 | 0.110 | 2.8 | 3,360 | 1,524 | 5,000 |
| G-82 | 3,461 | 87.9 | 3,241 | 82.3 | 0.110 | 2.8 | 3,951 | 1,792 | 5,880 |
| G-92 | 3,964 | 100.7 | 3,688 | 97.3 | 0.137 | 3.5 | 5,367 | 2,557 | 8,390 |
| G-104 | 4,464 | 113.4 | 4,188 | 100.4 | 0.137 | 3.5 | 6,369 | 2,889 | 9,480 |
